DIMENSIONS

Height: 164 mm

Width: 910 mm

Depth: 130.5 mm

Lens Depth: 28.8 mm

Weight: 7.08 kg

SYSTEM REQUIREMENTS

Internet Connection: Wired or wireless

USB Mode: Windows® 11, Windows 10, the two most recent versions of macOS

Appliance Mode: Room solution software license (not included)

TECHNICAL SPECIFICATIONS

Certifications & Compatibility

Certifications

- Microsoft Teams Rooms on Android™ 4For medium sized rooms

- Microsoft Teams Rooms on Windows 5For medium sized rooms

- Zoom Room™

- Tencent Meeting Rooms

Appliance Mode: Supports compatible video conferencing software in appliance mode (no PC required), including

- Microsoft Teams Rooms on Android

- Zoom Rooms

- GoToRoom®

- Pexip Room

- RingCentral Rooms™

- Tencent Meeting Rooms

USB Mode: Plug-and-play USB connectivity with virtually any video conferencing application

For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications.

GENERAL SPECIFICATIONS

Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform

Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference

Device Management: Logitech Sync

Displays Supported: 2 (up to 1080p)

Display Resolution: Up to 1080p

Network Protocol Support: IPv4, IPv6

Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

Camera

Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps

Pan: Motorized ±25°

Tilt: Motorized ±15°

Zoom: 15X HD zoom (5X optical and 3X digital)

Diagonal Field of View: 90°

Horizontal Field of View: 82.1°

Vertical Field of View: 52.2°

Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical

Speakers

Drivers: 2x 70 mm

Sensitivity: 92 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter

Rated Power: 8W

THD: 1kHz <2% at 1W

Speaker Sampling Rate: 48 kHz

Impedance: 4 Ohms

Microphones

Frequency Response: 90Hz – 16kHz

Sensitivity: >-36dBFS +/-1 dB @ 1Pa

Microphone data rate output: 48KHz

Pickup Range: 7 m

Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams

Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)

Noise suppression: AI based de-noising algorithm

Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms

RightSense™ Technologies

RightLight: Renders natural skin tones for each participant

RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room

RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo

Interfaces

HDMI Out: 2 (up to 1080p)

HDMI In: 1

USB: 3x Type A, 1x Type C

Network: 10/100/1G Ethernet

WiFi: 802.11a/b/g/n/ac

External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)

Remote Control: Bluetooth® Low Energy

Power & Cables

Power supply: Auto-sensing

Operating Voltage/Power: 100-240V, 19V, 4.74A

Power Supply Dimensions: 127 mm x 51 mm x 30 mm

DC Cable: 1.5 m

AC Cable: 1 m

HDMI 1.4 Cable: 2 m

USB A to USB C 3.0 Cable: 2.2 m

Environmental

Operating Temperature: 0 to 40°C

Storage Temperature: -40 to 70 °C

Humidity: 10 to 95%

BTU/hr: 57 idle, 64 in meeting

Security

Full Disk Encryption: AES-128

Data Encryption: Symmetric Keys, PKI

Device Identity: Protected by device attestation

Device Access: Authenticated using API

Key Protection: Arm TrustZone, RPMP

Accessories

MOUNTS: Wall Mount for Video Bars, TV Mount for Video Bars

Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable

Connectivity: Logitech Strong USB (10 m, 25 m, 45 m)

Touch Controller: Logitech Tap and Tap IP 6

PACKAGE CONTENTS

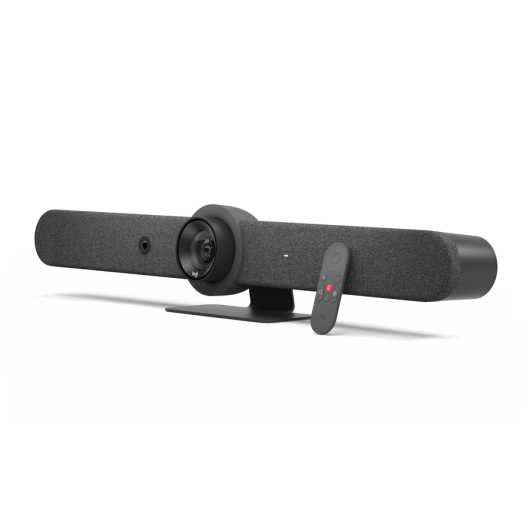

Rally Bar

Power supply

AC power cord

HDMI cable

USB cable

Remote control

Lens caps for main camera and AI Viewfinder

User documentation

WARRANTY INFORMATION

Standard: 2-year limited hardware warranty included.

Extended: Additional one-year and three-year extended warranties available at the time of hardware purchase.

Contact your reseller for availability.

PART NUMBER

Graphite: 960-001312

White: 960-001324
