Features and Benefits

Wi-Fi capacity requirements in office buildings, classrooms, and retail venues are rapidly raising due to increase in Wi-Fi connected devices, non-Wi-Fi IoT devices and bandwidth-hungry applications.

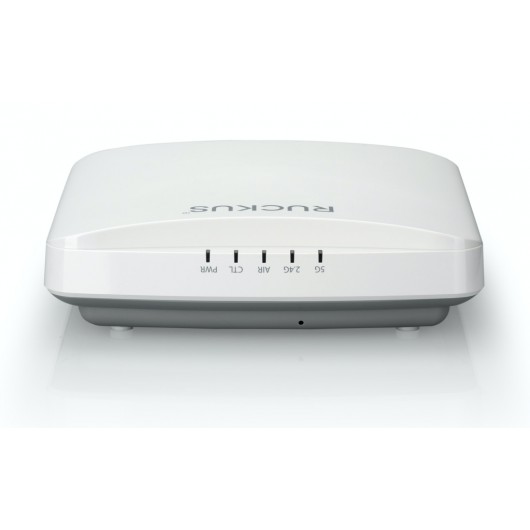

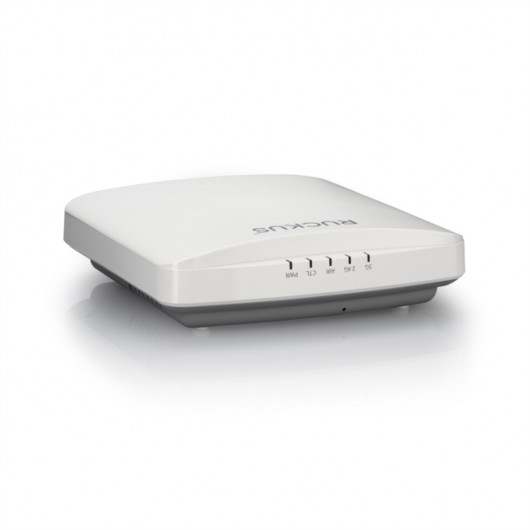

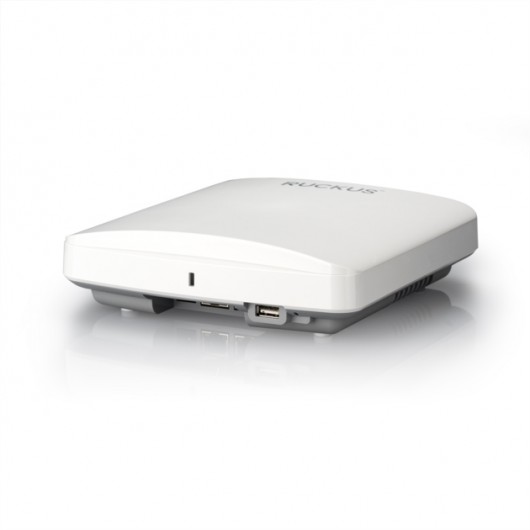

The R650 access point (AP) with the latest Wi-Fi 6 (802.11 ax) technology delivers increased capacity, improved coverage and performance in dense environments. The R650 is our mid-range dual-band, dual-concurrent AP that supports six spatial streams (4x4:4 in 5GHz, 2x2:2 in 2.4GHz). The R650 supports peak data rates of up to 2974 Mbps and efficiently manages up to 512 clients connections. Furthermore, 2.5GbE Ethernet ensures the backhaul will not be a bottleneck for full use of available Wi-Fi capacity.

The R650 has built-in IoT radios with onboard Bluetooth® Low Energy and Zigbee capabilities. In addition, the R650 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with the pluggable IoT module.

• Stunning Wi-Fi Performance - Mitigate interference and extend coverage with patented BeamFlex+™ adaptive antenna technology utilizing several directional antenna patterns
• Serve More Devices - Connect more devices simultaneously with six MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing device performance
• Converged Access Point - Allow customers to eliminate siloed networks and unify WiFi and non-WiFi wireless technologies into one single network by using built-in Bluetooth® Low Energy and Zigbee, and also expanding to any future wireless technologies
• Automate Optimal Throughput - ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support
• Multiple Management Options - Manage the R650 from the cloud, with on-premises physical/virtual appliances, or without a controller
• Better Mesh Networking - Reduce expensive cabling, and complex mesh configurations by checking a box with SmartMesh wireless meshing technology to dynamically create self-forming, self-healing mesh networks
• More than Wi-Fi - Support services beyond Wi-Fi with RUCKUS IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics

Specifications

Product Classification

Regional Availability：Asia | Australia/New Zealand | EMEA | Latin America | North America

Product Type：Indoor access point

Product Brand：RUCKUS®

General Specifications

Antenna Gain：Up to 3 dBi

BeamFlex：Yes

Concurrent Users：512

Controller Support：RUCKUS SmartZone | RUCKUS ZoneDirector | Standalone

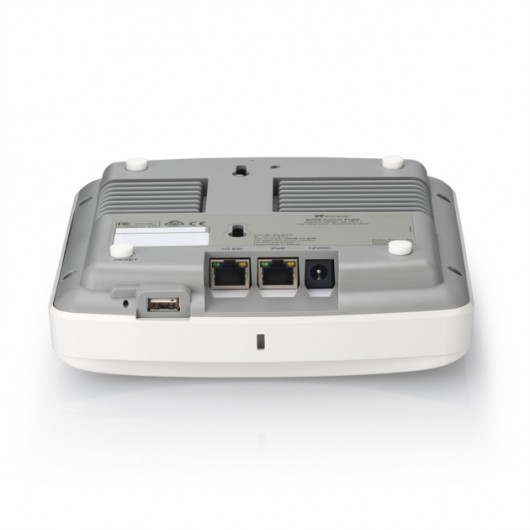

Ethernet Ports：1 x 1 GbE | 1 x 2.5 GigE

IoT Support：IoT Onboard

PD-MRC：Yes

PHY Rate at 2.4 GHz, maximum：574 Mb/s

PHY Rate at 5 GHz, maximum：2000 Mb/s

Radio Chains and Streams：4x4:4 (5 GHz) 2x2:2 (2.4 GHz)

SmartMesh：Yes

USB：USB 2.0

Venue Type：Education | Office/Retail

Venue Sub-Type：Classroom | Office Space | Stores

Wi-Fi Interface Standard：IEEE 802.11a/b/g/n/ac/ax Wave 2

Wi-Fi Interface Standard at 2.4 GHz：802.11ax

Wi-Fi Interface Standard at 5 GHz：802.11ax

Environmental Specifications

Operating Temperature：0 °C to +40 °C (+32 °F to +104 °F)
