Features and Benefits

The R850 is based on the latest Wi-Fi standard, Wi-Fi 6 and bridges the performance gap from ‘gigabit’ Wi-Fi to ‘multi-gigabit’ Wi-Fi in support of the insatiable demand for better and faster Wi-Fi.The R850 makes it easy to deliver reliable, secure, ultra-high-performance connectivity to large enterprises, public venues, convention centers, and other challenging environments.

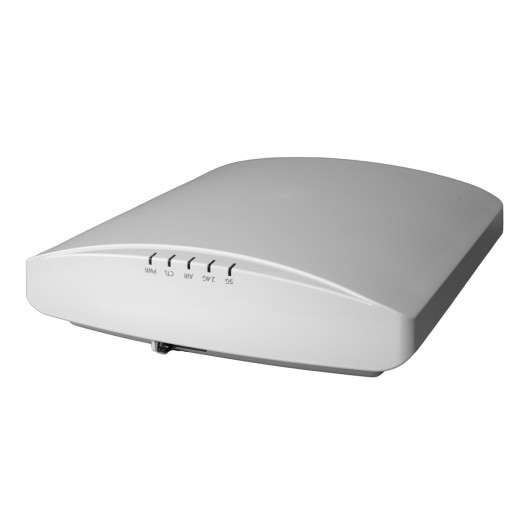

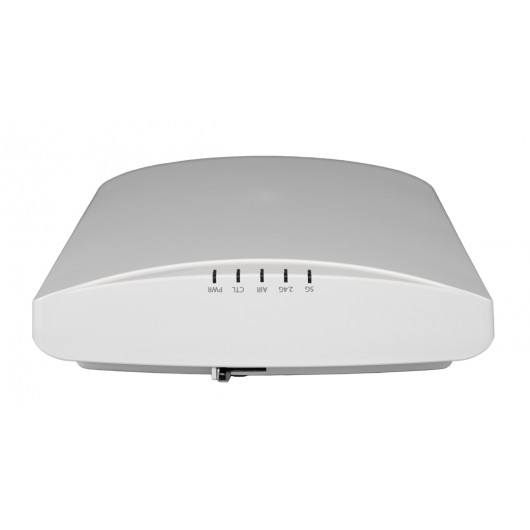

The R850 is our highest capacity dual-band, dual-concurrent Wi-Fi 6 (802.11ax) access point (AP) that supports 12 spatial streams (8x8:8 in 5GHz, 4x4:4 in 2.4GHz). The R850, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1,024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments.

• Connect More Devices Simultaneously - Improve device performance, by enabling more simultaneous device connections with built-in 8 spatial streams (dual-concurrent, 8x8:8 in 5GHz, 4x4:4 in 2.4GHz), MU-MIMO and OFDMA technology while enhancing non-Wi-Fi 6 client performance. Support for up to 1,024 clients
• Ultra-High-Density Performance - Provides exceptional end-user experience within stadiums, large public venues, convention centers and school auditoriums with the RUCKUS Ultra-High-Density Technology Suite
• Enhanced Security - Reinforce security with WPA3, the latest Wi-Fi security standard and receive enhanced protection from man-in-the-middle attacks
• Multi-Gigabit Access Speeds - Optimized multi-gigabit Wi-Fi performance delivered using built-in 5GbE/2.5GbE Ethernet ports to connect to multi-gigabit switches
• Device Management Options - Manage the R850 with on-premises physical/virtual appliances or the cloud
• Better Mesh Networking - Minimize complexity by reducing expensive cabling with SmartMesh that dynamically creates self-forming, self-healing mesh networks
• Automate Optimal Throughput - ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support
• More than Wi-Fi - Support services beyond Wi-Fi with RUCKUS IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and RUCKUS analytics

Specifications

Product Classification

Regional Availability：Asia | Australia/New Zealand | EMEA | Latin America | North America

Product Type：Indoor access point

Product Brand：RUCKUS®

General Specifications

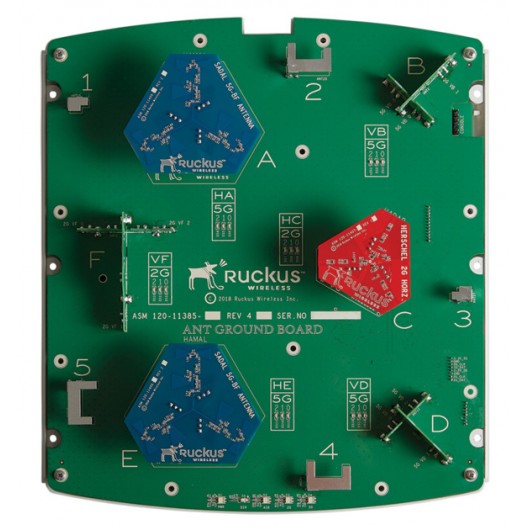

Antenna Patterns, per band：4000+

Antenna Gain：Up to 2 dBi

BeamFlex：Yes

ChannelFly：Yes

Concurrent Users：1024

Controller Support：RUCKUS Cloud™ | RUCKUS SmartZone | RUCKUS ZoneDirector | Standalone

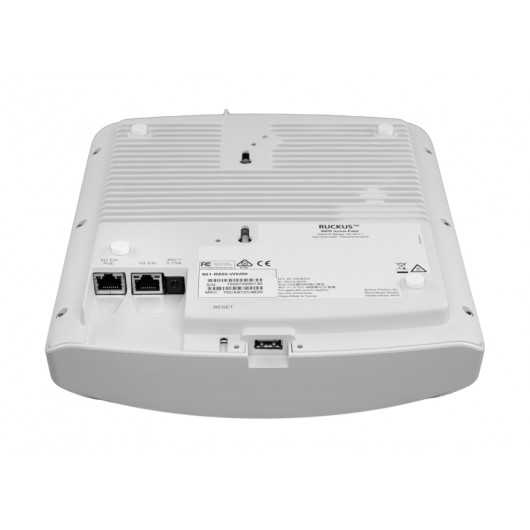

Ethernet Ports：1 x 1 / 2.5 / 5 GB/s | 1 x 1 GbE

IoT Support：IoT Onboard

PD-MRC：Yes

PHY Rate at 2.4 GHz, maximum：1148 Mb/s

PHY Rate at 5 GHz, maximum：4800 Mb/s

Radio Chains and Streams：8x8:8 SU-MIMO and MU-MIMO

Rx Sensitivity at 2.4 GHz：-91 dBm

Rx Sensitivity at 5 GHz：-91 dBm

SmartMesh：Yes

USB：USB 2.0

Venue Type：Hospitality | Public Venue | Transportation

Venue Sub-Type：Convention Floor | Lecture Hall | Transit Stations | Venue Common Spaces

Wi-Fi Interface Standard：IEEE 802.11a/b/g/n/ac/ax

Wi-Fi Interface Standard at 2.4 GHz：802.11ax

Wi-Fi Interface Standard at 5 GHz：802.11ax

Environmental Specifications

Operating Temperature：0 °C to +50 °C (+32 °F to +122 °F)

Product Specification
